Modular Anchor Pendant Buoys

Safety,Stability and Economy are Our Core Product Power

NANHAI offers two types of surface Modular Anchor Pendant Buoy

Standard Modular Anchor Pendant Buoy

Donut Modular Anchor Pendant Buoy

Modular Anchor Pendant Buoys

Safety,Stability and Economy are Our Core Product Power

NANHAI offers two types of surface Modular Anchor Pendant Buoy

Standard Modular Anchor Pendant Buoy

Donut Modular Anchor Pendant Buoy

NANHAI

Modular Anchor Pendant Buoys

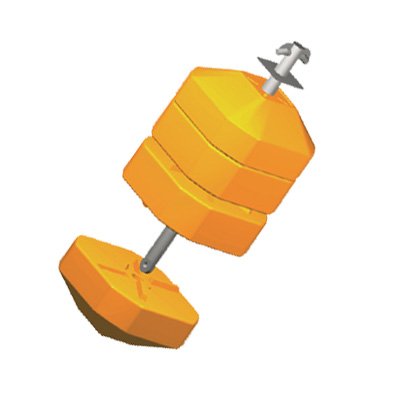

Standard Modular Anchor Pendant Buoys

Standard Modular Anchor Pendant buoys consist of removable,interchangeable modules with discrete end modules and center modules assembled onto central steelwork and fixed in position with retaining flanges, making up buoys ranging from 1T to 100T net buoyancy.

Each module is manufactured from a high performance, low density rigid polyurethane foam core, totally encapsulated within a rigid polymer skin. The polyurethane core is lightweight and closed cell in nature and will not absorb water even if the skin is punctured. The modules are for surface use only and should not be submerged and subjected to hydrostatic pressure.

Modular-Anchor-Pendant-Buoys-2
Standard Modular Anchor Pendant Buoys

Modular Anchor Pendant Buoys Spec.

Standard Modular Anchor Pendant Buoys Spec.

*Buoyancy and buoy weight will be change according to customization. Please contact us to know more.

NANHAI

Modular Anchor Pendant Buoys

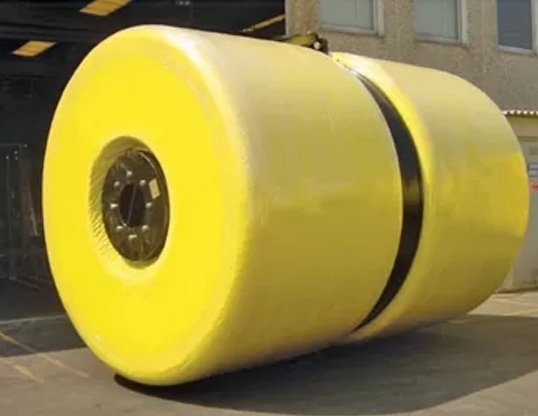

Donut Modular Anchor Pendant Buoys

The donut modular system typically comprises of 2 or 4 removable and interchangeable modules which rotate around a central steel skeleton or frame. A nett buoyancy range from 4T to 40T is achievable.

The buoyancy modules (donuts) are constructed by spiral winding and thermo-laminating polyethylene foam onto a central steel spool, producing an energy absorbing core which is then encapsulated within a tough polyurethane elastomer protective skin. The resilient core ensures that the buoy is completely self fendering and the buoy is also resistant to abrasion and ultra violet degradation.

The Modular Anchor Pendant Buoy systems can be manufactured to suit any specific size or buoyancy requirement. Although standard production colors are yellow or orange, NANHAI will manufacture modular buoys in other colors to meet specific customer requirements. Optional items include internal radar reflectors, reflective tape and navigation lights.

Modular-Anchor-Pendant-Buoys-8
Donut Modular Anchor Pendant Buoys

Modular Anchor Pendant Buoys Spec.

Donut Modular Anchor Pendant Buoys Spec.

*Buoyancy and buoy weight will be change according to customization. Please contact us to know more.

International Leading Buoys Manufacturer

NANHAI is the international leading foam buoy manufacturer, accumulated nearly 20 years R&D and production experience.

SHANDONG NANHAI AIRBAG ENGINEERING CO.,LTD. established since 2006, which is the international leading manufacturer in marine fender and marine airbag production. NANHAI is also the China leading brand in offshore buoyancy engineering industry. Company focuses on various areas including port infrastructure, berthing and mooring, offshore floating structure R&D, design and technology application ( offshore wind power, marine aquaculture, oil and gas, bridge protection, etc. ) After nearly 20 years of development, product and technology applications have covered more than 80 countries and regions in 7 continents, NANHAI became the well-known brand in the world.

NANHAI Other Type Buoys

NANHAI manufacture in all types marine buoys and provide customized buoys solutions.

General-Surface-Support-Buoys-3
Cylindrical Buoys
General-Surface-Support-Buoys-4
Chain Through Buoys
General-Surface-Support-Buoys-6
Pick Up Buoys
Anchor-Pendant-Buoys-30
Suitcase Pendant Buoys
Mooring-Buoys-

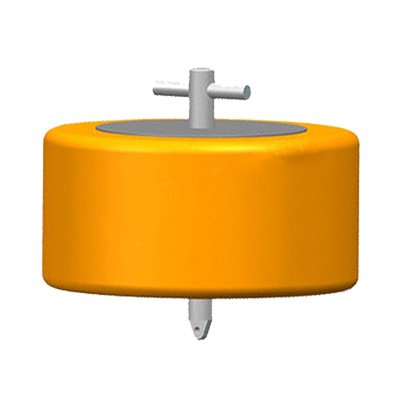

Mooring Buoys
Barrel-Buoys
Barrel Mooring Buoys
Modular-Anchor-Pendant-Buoys
Modular Pendant Buoys
Spherical-Buoys
Spherical Buoys
-Navigation-Marker-Buoy

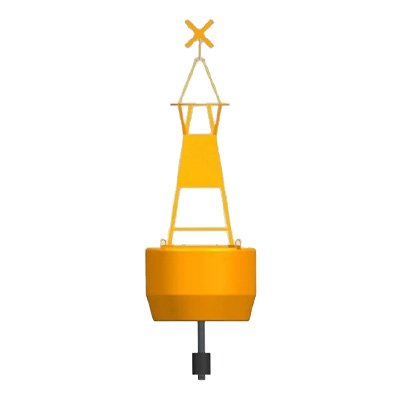

Navigation & Marker Buoy
